3-Phase Track 150 cm | Black | Aluminium | Pro-Track

Description

Three circuits in one profile

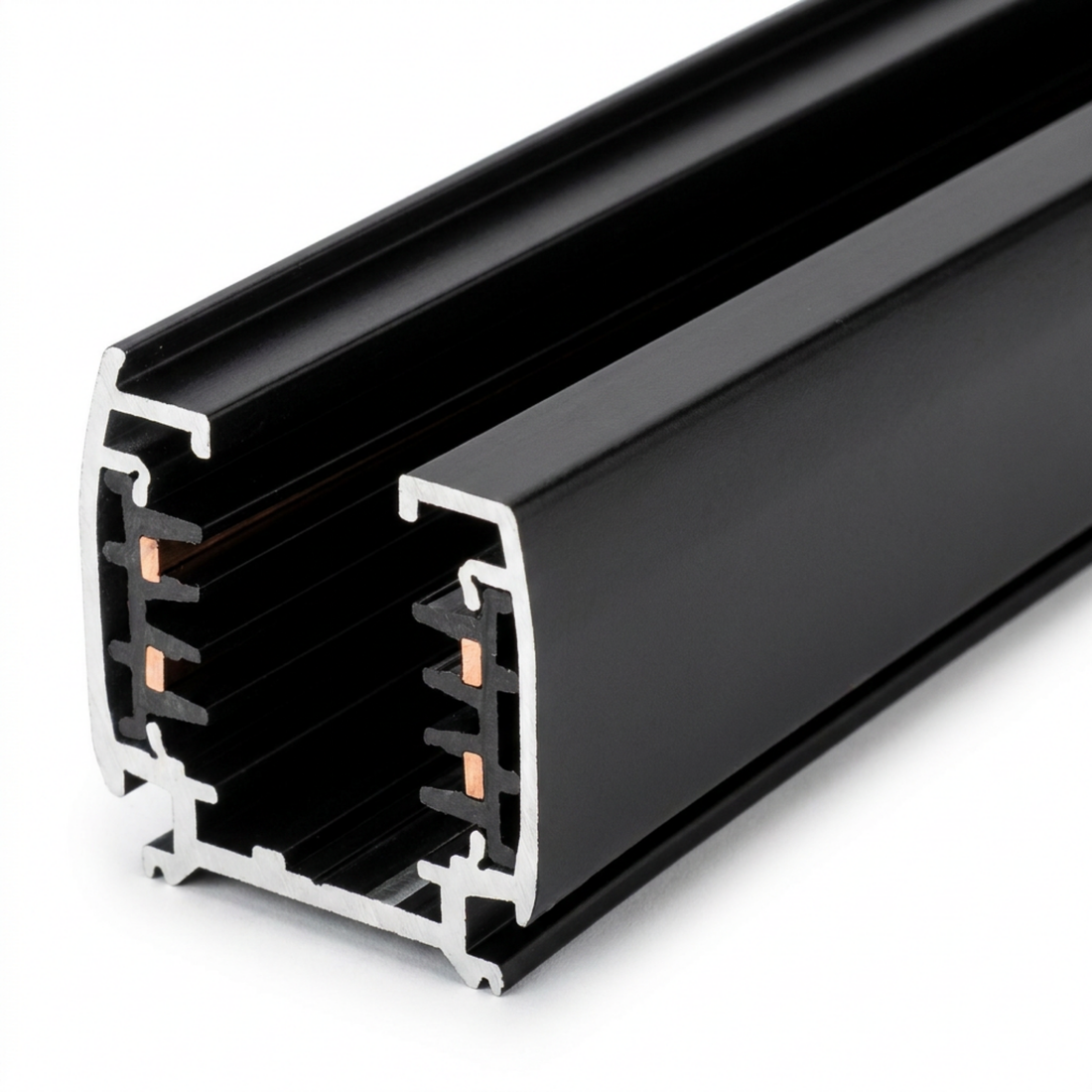

The 150 cm 3-phase track carries three separate circuits. This allows you to switch or dim the spotlights on a single track in up to three groups, without extra wiring. The aluminium profile measures 1500 x 35 x 35 mm and weighs 1.25 kg.

Extra quality and power

The conductors are made of 1.4 mm thick solid copper, so the profile carries 16 A per phase instead of the 8 A that lighter tracks are often designed for. The aluminium is 1.6 mm thick, the insulation carrier is nylon according to UL-94 V0. Three phases (L1, L2, L3) plus neutral conductor give you three individually switchable groups. You can cut the profile to size with a hacksaw, and you clamp the power supply to screw terminals.

Standard and compatibility

The track follows the Global Trac standard for 3-phase, the profile most commonly used in the professional market. Within Pro-Track, tracks, power supplies, connectors and end caps connect to each other. You cannot connect tracks and connectors from different brands.

On the job

Surface-mounted against the ceiling or freely suspended from pendants. You place the power supply on the left, right or in the middle of the track, so you adapt the track to the connection instead of the other way around. Everything from 3-phase track lighting is in stock, with a tiered discount for projects.
